Mobile Weighbridge
Mobile weighbridges are foundationless systems designed for temporary or seasonal use. They require a smooth and hard surface and can be supplied with ramps or without ramps depending on site requirements. Approach ramps on both sides allow vehicles to enter and exit from either direction, and the weather-resistant steel deck holds up in outdoor and rural conditions.
- Capacity
- 5 MT – 200 MT
- Foundation
- None — foundationless
- Surface
- Smooth, hard, level ground
- Deck
- Weather-resistant steel
- Ramps
- Both sides, two-way
- Platform
- Multi-modular · custom length
Manufactured with modern technology, computerized stress analysis, and pre-delivery testing. Warranty and AMC terms are finalized per project, with a minimum one-year warranty usually provided.
Key features
- Foundationless design — no civil work required
- Weather-resistant, durable steel deck
- Approach ramps on both sides for two-way movement
- Suitable for temporary, project, and agricultural sites
- Multi-modular platform in required length or width
- Capacity range from 5 MT to 200 MT
How to choose
Choose mobile weighbridges for seasonal procurement, temporary project sites, and locations where permanent civil work is not practical. The important site requirement is a smooth, hard surface, because the system is designed to reduce foundation work while still giving reliable vehicle weighing.
How a mobile weighbridge is deployed

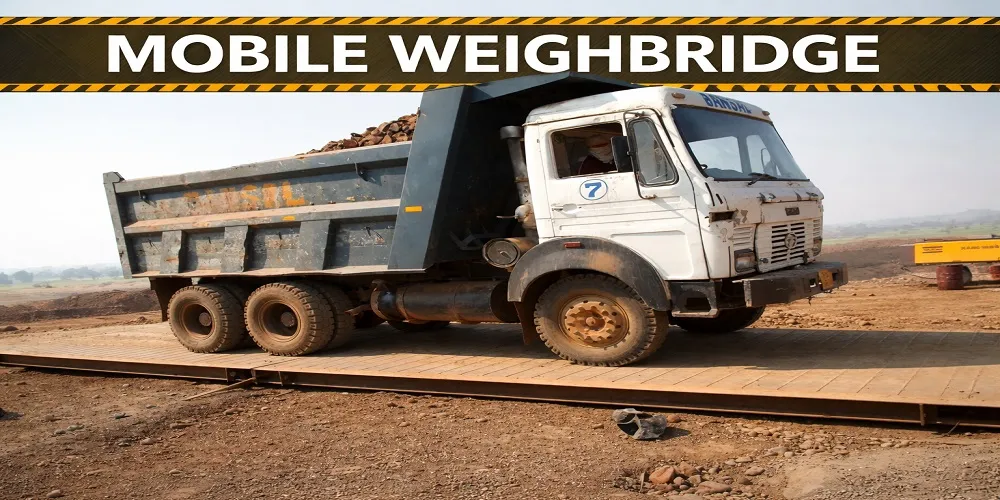

The modular steel platform is placed on a smooth, hard surface with approach ramps on both sides — no civil foundation required. That lets you set it up quickly at a seasonal or project site and relocate it when the work moves, while still weighing to weighbridge accuracy.
Site requirements
The one thing that matters is a firm, level, hard surface. Because the system skips foundation work, deployment is fast, but the ground must be stable enough to keep the platform level and the reading accurate.
- Smooth, hard, level ground
- No civil pit or foundation
- Space for ramps on both ends
- Relocatable as the site moves
Relocating it, and calibration afterwards
A mobile weighbridge is designed to be dismantled and moved. Because accuracy depends on the platform sitting level on firm ground, the system has to be re-levelled and its calibration checked at every new location before weighing resumes — a relocation is effectively a small re-installation, not just a shift.
- Platform re-levelled on the new surface
- Load-cell mounts and cabling re-checked
- Calibration verified against test weights before use
- Weighing for trade also needs Legal Metrology verification at the new site
Mobile versus a permanent weighbridge
Mobile wins on speed and flexibility: no excavation, no civil bill, and the asset moves with your operation. A permanent pit type or pitless weighbridge wins where the site is fixed and traffic is continuous, because it needs no ground preparation checks between seasons and handles heavy year-round use without relocation cycles. If the weighbridge will stay in one place for years, price both before deciding.
Where it's used
Standard platform sizes
| Platform size | Equivalent size | Capacity | Graduation | Load cells |
|---|---|---|---|---|
| 4.86 x 2.4 m | 16' x 8' | 10, 15 ton | 1, 2 kg | 4 |
| 6.1 x 2.4 m | 20' x 8' | 15, 25 ton | 2, 5 kg | 4 |
| 6.7 x 3 m | 22' x 10' | 30, 50 ton | 5 kg | 4 |
| 7.5 x 3 m | 25' x 10' | 50, 80 ton | 5, 10 kg | 4, 6 |
| 9 x 3 m | 30' x 10' | 50, 80 ton | 5, 10 kg | 6 |
| 10 x 3 m | 33' x 10' | 60, 80 ton | 5, 10 kg | 6 |
| 12 x 3 m | 40' x 10' | 60, 80, 100 ton | 10 kg | 6 |
| 15 x 3 m | 50' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 6, 8 |
| 16 x 3 m | 52' x 10' | 60, 80, 100, 120 ton | 10, 20 kg | 8, 10 |
| 18 x 3 m | 60' x 10' | 100, 120 ton | 10, 20 kg | 8, 10 |
| 20 x 3 m | 66' x 10' | 100, 120 ton | 10, 20 kg | 10 |
Custom platforms are manufactured to customer specification.
On site
Every platform is designed with computerised stress analysis, pre-assembled and tested at our Dewas works before dispatch, then installed and calibrated by our own engineers.
Request a quotation for this system
Send the details below and our engineers reply with the recommended platform size, capacity, load-cell count and a costed quotation — not a generic price list.
What helps us quote accurately
- Maximum gross weight crossing the weighbridge
- Longest vehicle you need to weigh, end to end
- Site location and available yard space
- Whether you need weighment software, ERP linkage or automation
- Whether the weighbridge will be used for trade, which requires stamping
Prefer to talk it through? Call +91-93502 36844 — our customer care line is reachable 24×7. Already running a weighbridge? See weighbridge installation, calibration, AMC and repair services.
Quote request — Mobile Weighbridge
Tell us the capacity and site. Our engineers reply with the recommended configuration and a quotation.
Frequently asked questions
Does a mobile weighbridge need a foundation?
No. It is foundationless — it sits on a smooth, hard surface with ramps on both sides, which makes it quick to install and relocate.
How accurate is it compared with a fixed weighbridge?
It uses the same load cells and indicators, so it weighs to the same accuracy, provided the ground is firm and level.

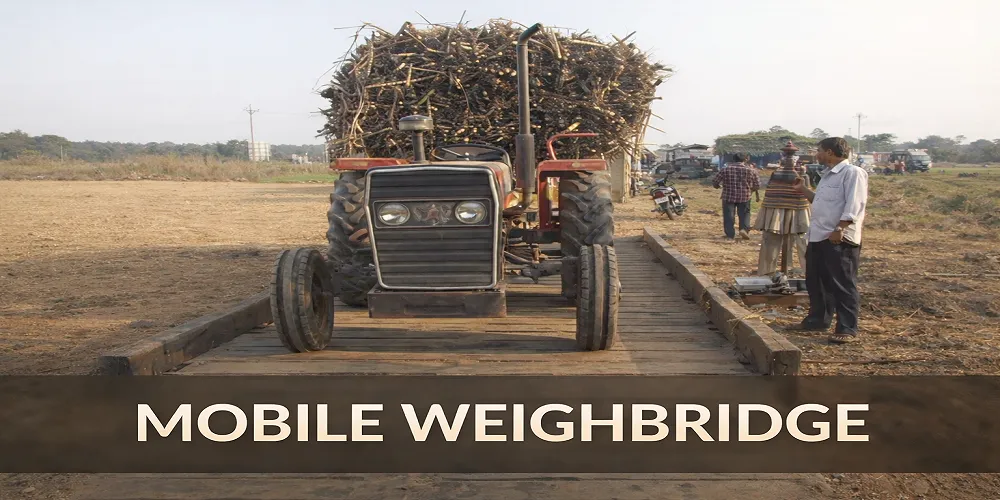

Is it suitable for cane or agricultural sites?
Yes. Mobile weighbridges are a common choice for seasonal cane collection and agricultural procurement points where permanent civil work isn't practical.
Does it need re-calibration after it is moved?
Yes. Accuracy depends on the platform being level on firm ground, so after every relocation the system is re-levelled and its calibration checked before weighing resumes. Where the weighbridge is used for trade, Legal Metrology verification also applies at the new site.
What capacity can it handle?
5 MT to 200 MT, with multi-modular platforms available in the length and width you need.
